Restaurant oil regeneration machine for used biodiesel / cooking oil COP-50 Oil Purifier manufacturer from China TOP OIL PURIFIER MANUFACTURE CO.,LTD

Restaurant oil regeneration machine for used biodiesel / cooking oil

Price:	1.0~5000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: COP-50 Oil Purifier

Production Capacity: 100 sets/month

Delivery Date: 10 days

Brand Name: TOP Oil Purifier

Means of Transport: Ocean,Land,Air

Packing: wooden case

Type: Oil Purifier

Restaurant oil regeneration machine for used biodiesel / cooking oil,soap,removing impurity, odor, water

Specifications

Cooking oil regeneration machine
1.for used biodiesel / cooking oil
2.steel carbon body fo industry
3.for used biodiesel oil

Restaurant oil regeneration machine for used biodiesel / cooking oil, soap,removing impurity, odor, water

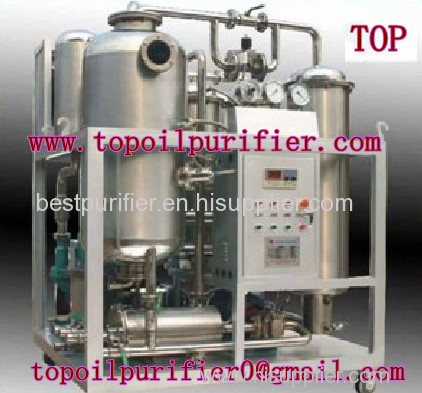

COP Cooking oil filtration plant is special for filtering waste cooking oil; it removes impurity, odor, water, acid and alcohol etc. from oil completely and effectively. Treated cooking oil color is limpidity, oil is good smell. This filtration plant is suitable for food factory, cooking oil factory, vegetable oil factory, it can help factory reclaim remnants oil. Also, it is a good filtration part for bio-diesel oil making.

Machine Advatage:
1. This plant composed by two parts, one is the press filter, and other one is the vacuum oil purifier system. The press filter can remove the big and tiny impurity; the precision of purification can reach to 1 Micro. The Vacuum system equips three grades filter (primary filter, mass water separator, and fine filer). All process works under the vacuum condition.

2. For the primary filter, which is made of the stainlessness steel, it is anti-rust and anti-corrupt, it mainly removes the residual impurity which escape from the press filter, making sure the oil h

3. The water separator, which equips the special filter, which mainly remove the mass water from the oil, because usually the waste cooking oil always contains much water, so we need remove the mass from ave not any impurity when it goes into the water separator and vacuum separator. the oil. After the water separator, the oil just contains the tiny water and soluble water.

4. After the process of the water separator, the oil will goes into the vacuum separator, which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80 C, Because our machine works under the vacuum and low pressure condition, so it don't need heat the oil to 100 C, usually it just need heat the oil to 45 C, Then it can remove the tiny water, soluble water, acid, alcohol and other volatility liquid and so on completely and effectively.

5. The fine filer, which is equips the stainlessness steel filter, the purification hole is less then 1 Micro, which can make sure the oil is completely clear, no any impurity.

Table 1 Vacuum Oil Purifier Technology Standard

Parameters	Unit	COP-10	COP-20	COP-30	COP-50	COP-100	COP-150	COP-200	COP-300
Flow Rate	L/min	10	20	30	5	100	150	200	300
Working Vacuum	MPa	-0.06 ~ -0.095
Working Pressure	MPa	≤0.4
Temperature Range	°C	0 ~ 100
Power supply		380V,50Hz, 3 phase (or as needed)
Working noise	dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80	≤82
Heating power	KW	36	40	45	72	80	90	120	135
Total power	KW	38	42	47	75	87	101	135	147
Inlet/outlet	mm	25	25	25	32	42	50	50	60
Net weight	Kg	450	550	600	750	850	1000	1200	1500
Overall dimensions	mm	1500×1000×1200	1500×1050×1600	1500×1050×1650	1600×1150×1700	1750×1250×1800	1900×1600×1950	1900×1700×2000	2100×1700×2100

Table2 COP Oil Purifier Treated Guarantee Value

Item	Guarantee indexes
Moisture content	≤50 PPM
Demulsification value	New oil≤15min,running oil≤30min
Impurity size	≤1 micron (no free carbon)
Gas content	≤0.1%
Clean degree	≤4 Grade (NAS1638)
